Design Criteria

ASME Section VIII, Division 1 (1998)
Addenda, PVHI-1d (1997)

Design Pressure

30 PSIG

Design Temp.

20-120 Deg F

Corrosion Allowance

.0625”

Test Pressure

45 PSIG

Minimum Metal Design Temp.

20 Deg F

Weight

2380 Lbs

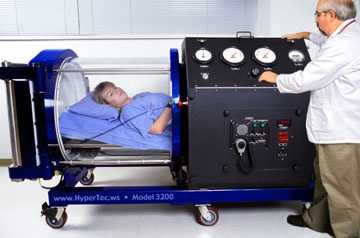

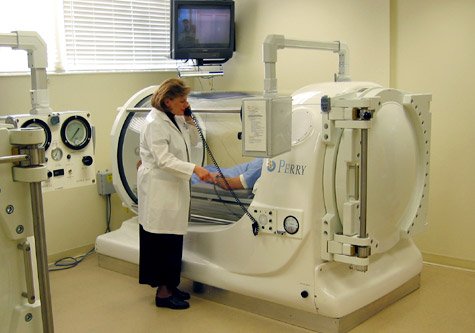

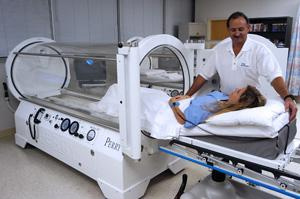

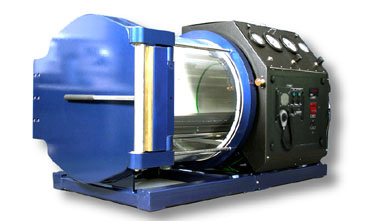

    HBOT  Chamber Data Sheet

1

MODEL

OCF-HBOT-100  (3 ATA)

2

HOUSING(외면)

STEEL  ELECT. PAINTING and GLASS

3

LIQUID OXYGEN  (액화산소 and 산소발생기)

            LPM (L/MIN.)

850/10

4

EFFICIENCY (INSIDE)(실내청정도)

                       NBS or ASHRAE TEST 90% ( 1 um)

OXYGEN (INSIDE)(실내산소농도)

Oxygen 23-70%

5

SIZE; mm ( WxHxD )(사용인원)

2200 x 1500 x 1000

1 MAN

6

CO2 (INSIDE)(이산화탄소정화)

ACTIVED CARBON

  HEPA

7

THERMO-HYGROSTAR (온습도)

        TUNNING COOLER

        VENTILATION (125-385 LPM)

8

DOOR CONTROL (출입문)

                                   CLIPS TYPE

PRESSURE (INSIDE)(高압계기)

                0  - 50 PSI

1 set

MIXING CHAMBER (O2+CLEAN AIR)

                CYCLON

1 SET

9

OXYGEN CONTROL (산소농도콘트롤)

              AUTO. MAN

1 SET

10

PRESSURE CONTROL (高압콘트롤)

            COMPRESSOR

1 SET

11

NETROGEN CONTROL (질소콘트롤)

              AUTO/MAN

1 SET

12

ELEC. POWER SOURCE

             220V x1? x 60HZ

1.2KW

REMARK

1. CONTROL PANEL, PRESSURE/OXYGEN/CO2 INDICATOR INSTALL.

2. CHECK VALVE, S/VALVE CONTROL

3. 주요구성품; HOUSING TANK, O2 GENERATOR, LIQUID NETROGEN 외 A'SSY 등

4. HOUSING; 투명유리나 투명아크릴 원통형 (45 PSIG ,안전율 1.5배율 )

5. O2 SUPPLY PRESURE ;50-90 PSIG

6. O2 SUPPLY(PEAK) FLOW; 850 LPM

7. PRESSURE CHAMGE RATE; 1-5 PSI/min. (or  0.2 ATA/min)

8. VENTILATION; 125-385 lpm (or 50-500 lpm)

9. VA ; 2.9-1, 1ATA/min

              DATE

               2008 . 07 .11. REV.
